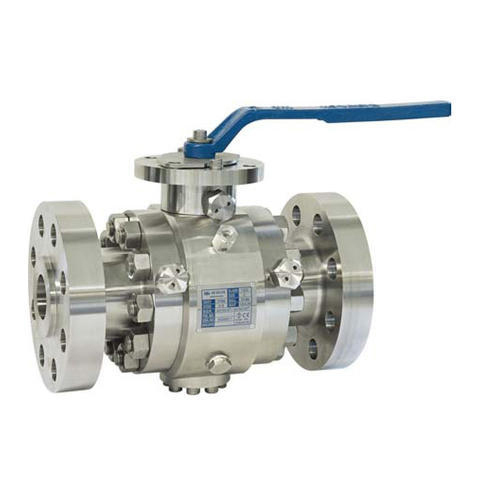

Trunnion Ball Valve

Name: Trunnion Ball Valve
Brand: Kiah Metallurgical India Exporters
Price: 5900 INR
Availability: InStock

Price 5900 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Trunnion Ball Valve Specification

Connection Type
Flanged, Butt Weld, Socket Weld

Material
Carbon Steel, Stainless Steel, Alloy Steel

Valve Type
Trunnion Ball Valve

Control System
Lever, Gear, Pneumatic/Electric Actuator

Valve Size
2 to 48 (DN50 to DN1200)

Features
Fire Safe Design, Blow-out Proof Stem, Double Isolation, Low Operating Torque

Voltage
220V / 380V (for actuated types)

Sealing
Soft or Metal Seated

Structure
Trunnion Mounted Ball Valve

Application
Oil & Gas, Petrochemical, Power, Water Treatment, Industrial Pipeline

Type
Ball Valve

Power
Manual, Pneumatic, Electric

Pressure
Class 150 to Class 2500

Media
Water, Oil, Gas, Acid, Steam

Port Size
Full Bore, Reduced Bore

Temperature
-29C to 200C

Disc
Antistatic Ball with Trunnion Support

Pin
Double Block & Bleed System

Design Standard
API 6D, ASME B16.34, ISO 17292

Drain Vent
Provided

Anti-static Device
Provided as Standard

Stem Type
Blowout-Proof, Anti-Blowout

Testing Standard
API 598, ISO 5208

Mounting Pad
ISO 5211 Direct Mount

Face to Face
ASME B16.10

End Connection Standard
ASME B16.5, ASME B16.25

Fire Safety
API 607, API 6FA Approved

Body Coating
Fusion Bonded Epoxy, PTFE, ENP

Operation
Quarter Turn

Trunnion Ball Valve Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
2 Days

About Trunnion Ball Valve

Experience world-class reliability with our Trunnion Ball Valve, engineered with a remarkable set of design standards: API 6D, ASME B16.34, and ISO 17292. This exclusive product features a corrosion-resistant polished finish with fusion bonded epoxy or PTFE coatings, ensuring unbeatable durability for your operations. Last chance to secure this exceptional valve with a double block & bleed system, fire safe design, and anti-blowout stem-all at an unbeatable price. Suitable for Oil & Gas, Petrochemical, Power, and Water Treatment industries. Available in full or reduced bore, with manual or automated operation, and manufactured in India.

Versatile Use and Superior Features for Critical Applications

Our Trunnion Ball Valve is ideal for diverse settings, from oil and gas pipelines to power plants and industrial water systems. Its polished body, fused epoxy coatings, and remarkable fire-safe design provide longevity and resilience. Available in various connection types-flanged, butt weld, or socket weld-it's designed for full or reduced bore applications. Additional features include anti-static devices, double isolation, and low operating torque, ensuring top-notch performance wherever it's installed.

Certified Excellence, Thoughtful Packaging, and Global Supply Reach

Our Trunnion Ball Valve comes certified under API 607, API 6FA, API 598, and ISO 5208, reflecting our world-class manufacturing standards. Supplied in robust export-grade packaging, each shipment is carefully prepared to guarantee product integrity upon delivery. With a strong supply network, we routinely outlay shipments to global markets throughout Asia, Europe, Africa, and the Americas. Our valves are trusted by leading industrial buyers for consistent performance and reliability.

FAQ's of Trunnion Ball Valve:

Q: How does the Trunnion Ball Valve support high-pressure applications?

A: The Trunnion Ball Valve is designed for pressures from Class 150 to Class 2500, with a robust trunnion-mounted structure and double block & bleed system, making it ideal for demanding, high-pressure environments.

Q: What are the main benefits of the fire-safe and anti-blowout features?

A: Fire-safe certification (API 607, API 6FA) ensures safety under extreme conditions, while the anti-blowout stem design offers enhanced operational security by preventing stem ejection during use.

Q: Where can the Trunnion Ball Valve be installed?

A: This valve is perfect for use in oil and gas, petrochemical, power generation, water treatment, and a wide range of industrial pipeline applications, ensuring versatile functionality.

Q: What is the typical process for receiving and installing the valve upon shipment?

A: Valves are securely packaged to prevent transit damage. Upon arrival, installation is simplified by standards-compliant connections (flanged, weld), and ISO 5211 mounting pads facilitate actuator integration.

Q: When should you choose between soft-seated and metal-seated variants?

A: Choose a soft-seated valve for leak-tight sealing with clean media, and opt for a metal-seated variant if you're handling high temperatures or abrasive media to ensure longevity and reliable performance.
